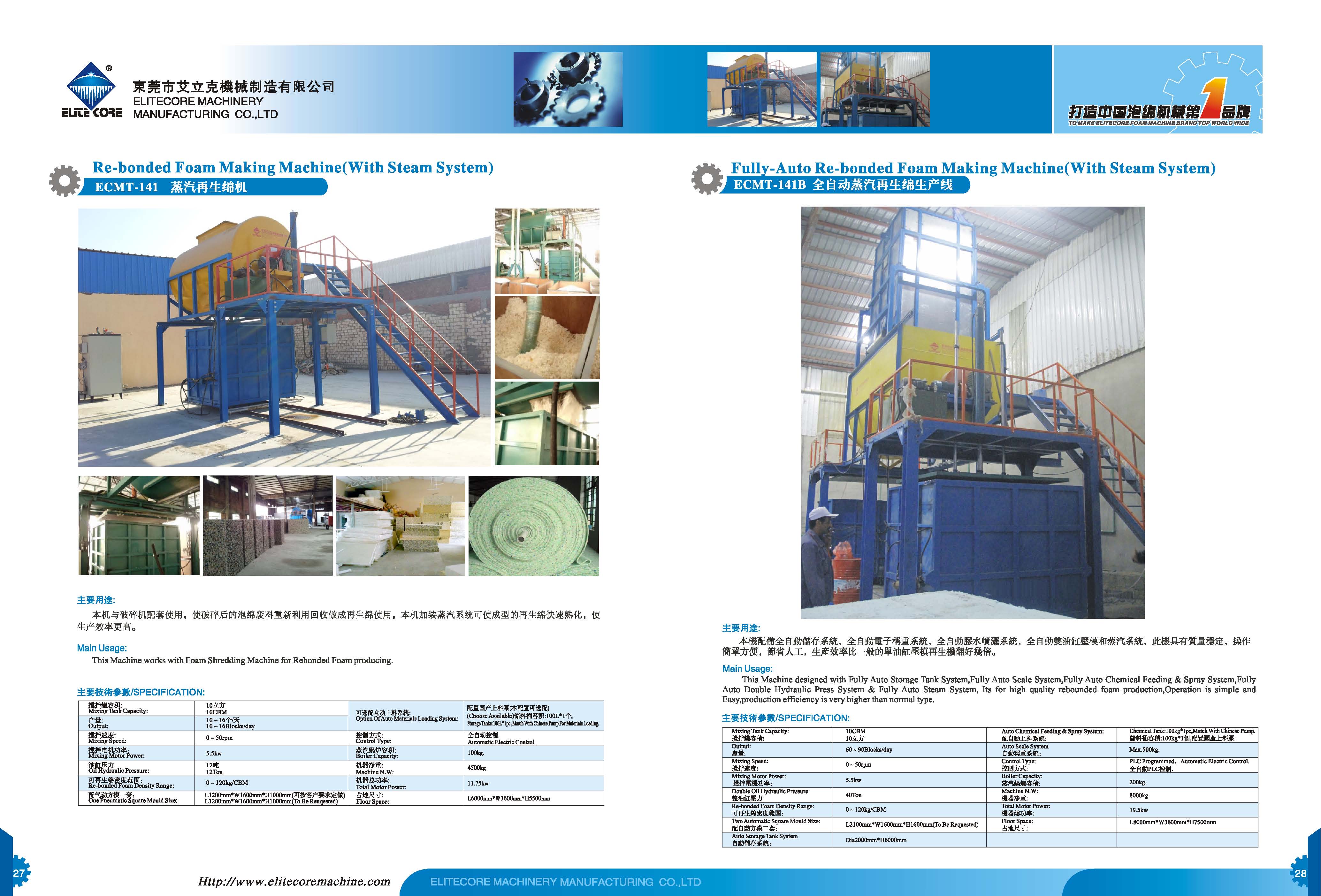

ECMT-141 Re-bonded Foam Making Machine(With Steam System)
Main Usage:
This Machine works with Foam Shredding Machine for Rebonded Foam producing.It
SPECIFICATION:
ECMT-141 |
Mixing Tank Capacity: | 10CBM |
Output: | 50～80Blocks/day |
Mixing Speed: | 0～50rpm |
Mixing Motor Power: | 11kw |
Oil Hydraulic Pressure: | 12Ton |
Re-bonded FoamDensityRange: | 0～120kg/CBM |
One Pneumatic Square Mould Size: | L2100mm*W1600mm*H1200mm(To Be Reuqested) |
Option Of Auto Materials Loading System: | Storage Tanks:100kg*2pcs,Match With Chinese Pump For Materials Loading.(Choose Available) |
Control Type: | Automatic Electric Control. |
Boiler Capacity: | 200kg. |
Machine N.W: | 4250kg |
Total Motor Power: | 16.8kw |
Floor Space: | L6000mm*W3600mm*H5500mm |
